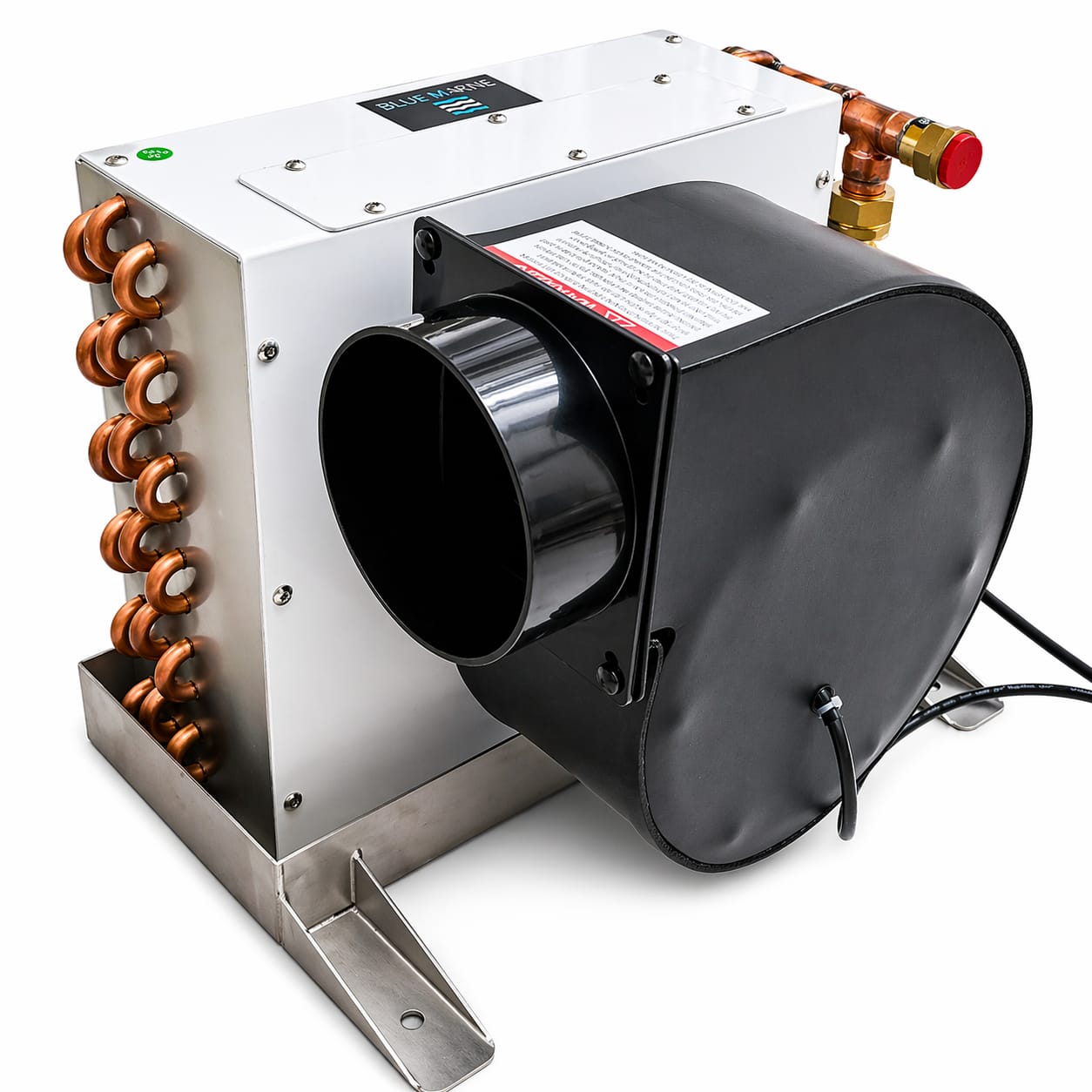

Multidirectional blower
Adjustable discharge direction and multiple fan speeds give you more flexibility in cabin and cabinetry installations.
FC SERIES
Marine fan
coil units.
Compact air handlers for marine chilled-water installations. Available from 7,000 to 36,000 BTU/h.
Price on request
Request a quote

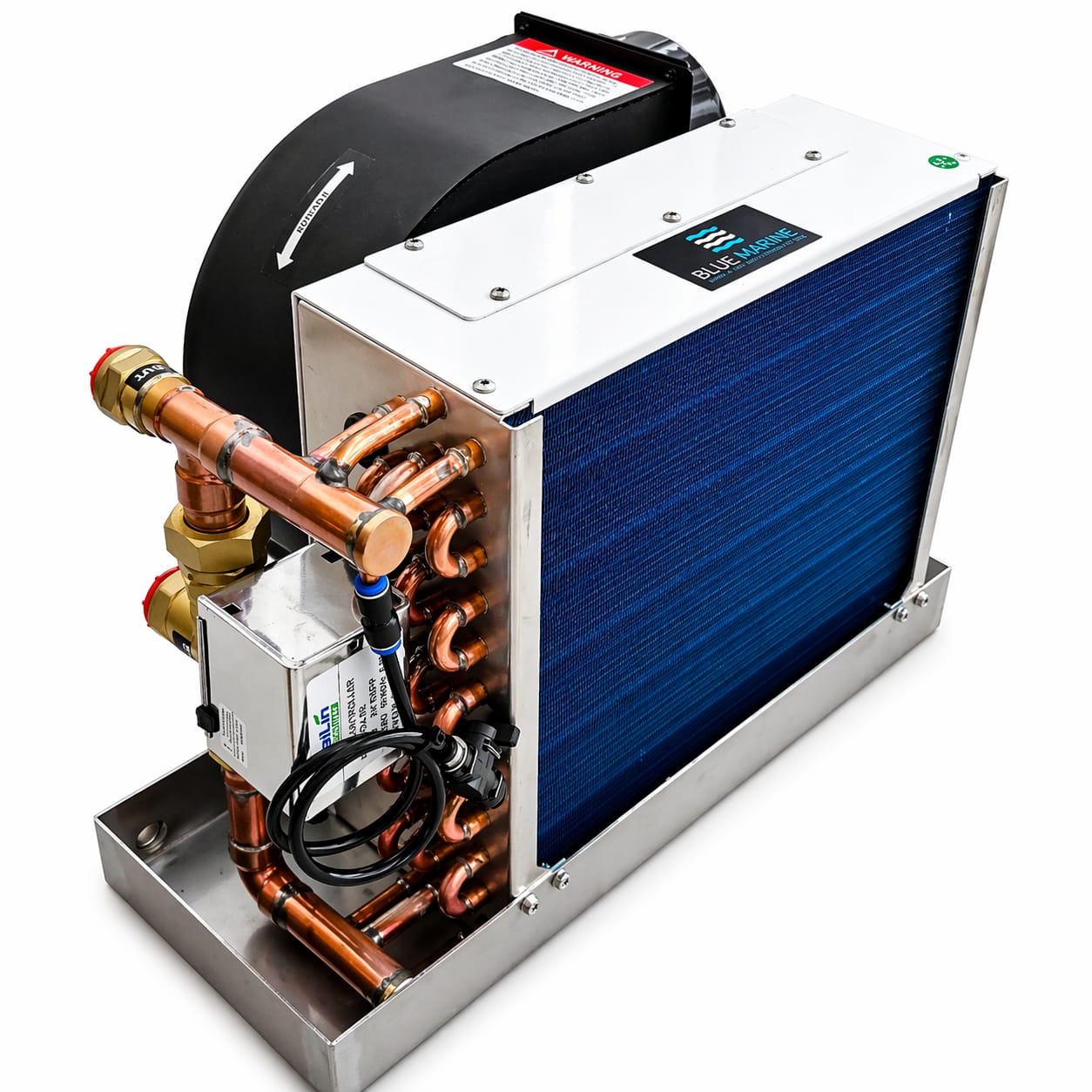

Marine heat exchange
Copper-tube, aluminium-fin coil with a stainless-steel condensate tray.
Service access
Removable washable filter for routine cleaning and airflow maintenance.
CABIN AIRFLOW & LOCAL CONTROL
Deliver comfort
where it is needed.
FC Series fan coils transfer cooling from the vessel’s chilled-water circuit into the cabin air. Models from 7,000 to 36,000 BTU/h serve guest cabins, master suites, crew accommodation and larger living spaces.
The multi-speed blower lets users adjust airflow to suit the cabin. Local digital controls provide temperature adjustment and fan-speed selection, with system monitoring and diagnostics for day-to-day operation.
Adjustable airflow
Select fan speed to suit the room and current cooling demand.

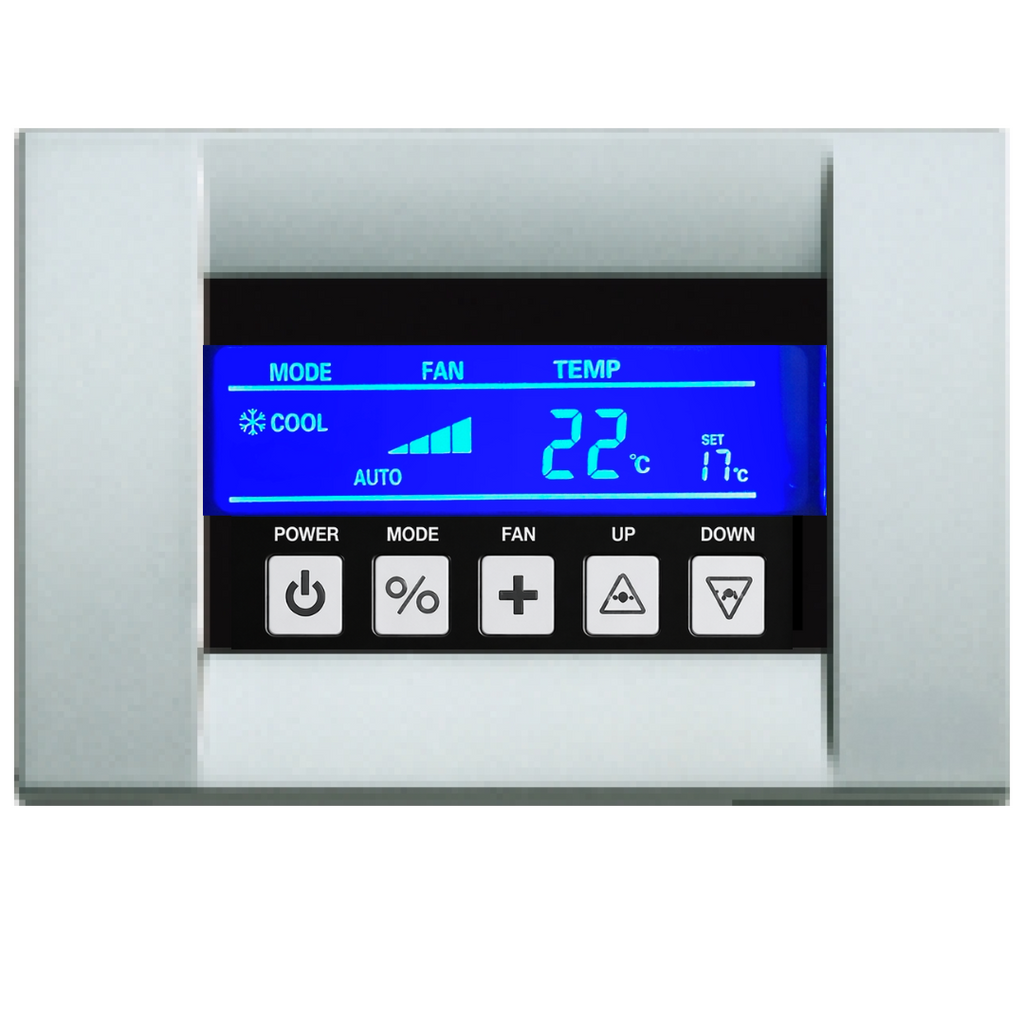

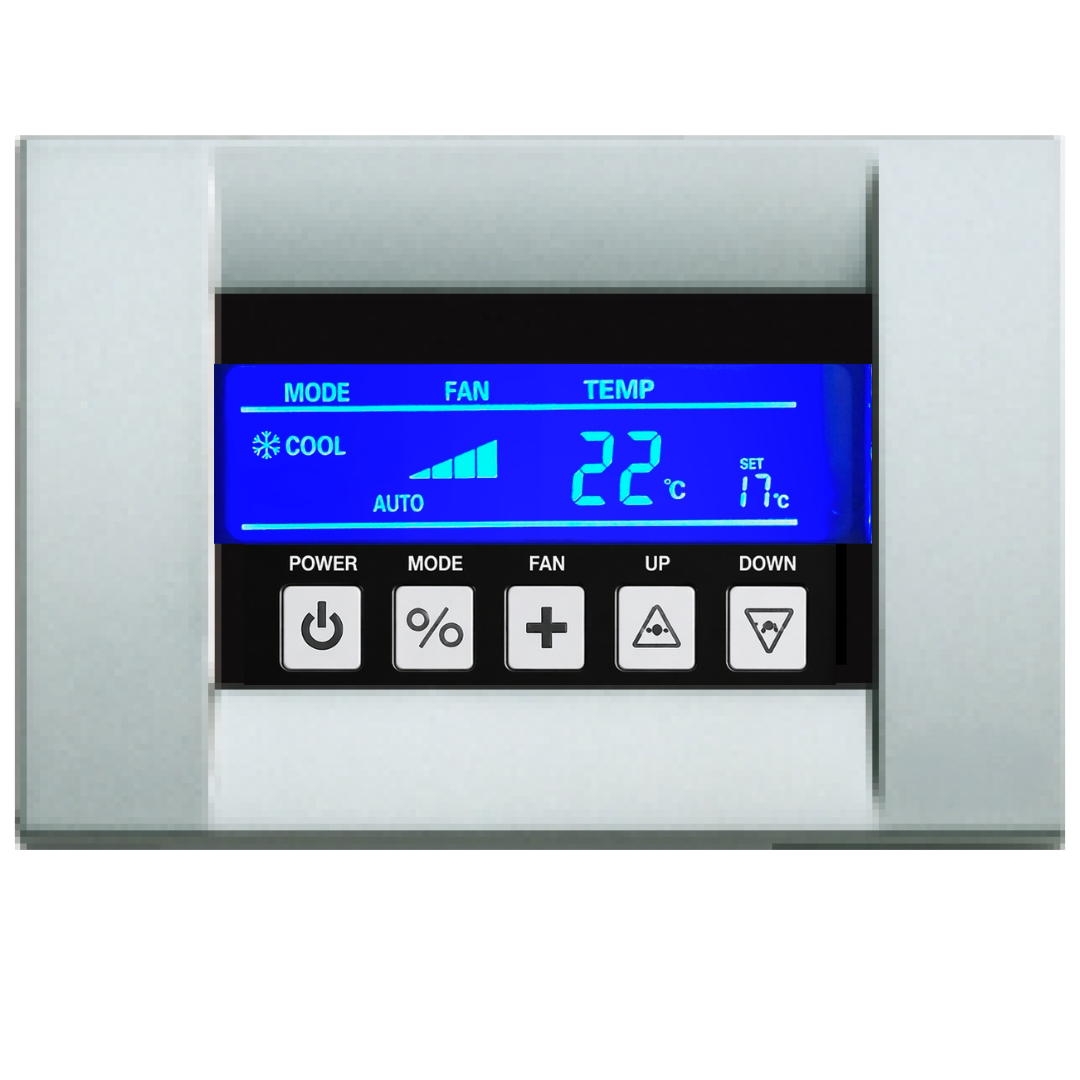

Local temperature control
Manage cabin comfort from the supplied digital controller.
COMPACT DIMENSIONS & DISCHARGE OPTIONS
More flexibility
inside the cabinetry.
The multidirectional blower lets installers adjust the discharge orientation to suit the duct route. Combined with compact dimensions, it gives more flexibility when positioning a fan coil around bunks, panels and cabinetry.
That flexibility is useful in both new builds and refits, where existing openings and service access may shape the installation. On-page dimensions, airflow figures and duct diameters help installers select the right model and plan the route to the cabin outlets.
Multidirectional blower
Adapt the outlet orientation to the vessel’s duct layout.
Clear model comparisons
Compare height, width, depth, airflow and connection sizes before choosing a unit.
MARINE MATERIALS & MAINTENANCE
Construction for
everyday service.
A copper-tube, aluminium-fin coil provides heat exchange, while the stainless-steel condensate tray handles moisture collected during cooling. A removable, washable filter makes regular cleaning straightforward.
FC units work with Blue Marine chillers and other standard marine chilled-water systems. They offer a practical way to complete a new central system or replace individual cabin air handlers within an existing installation.
Washable filter
Access the filter for routine cleaning and airflow maintenance.
Chilled-water compatibility
Use with Blue Marine VFD chillers or standard marine chilled-water systems.
PRODUCT DETAILS
A closer look.

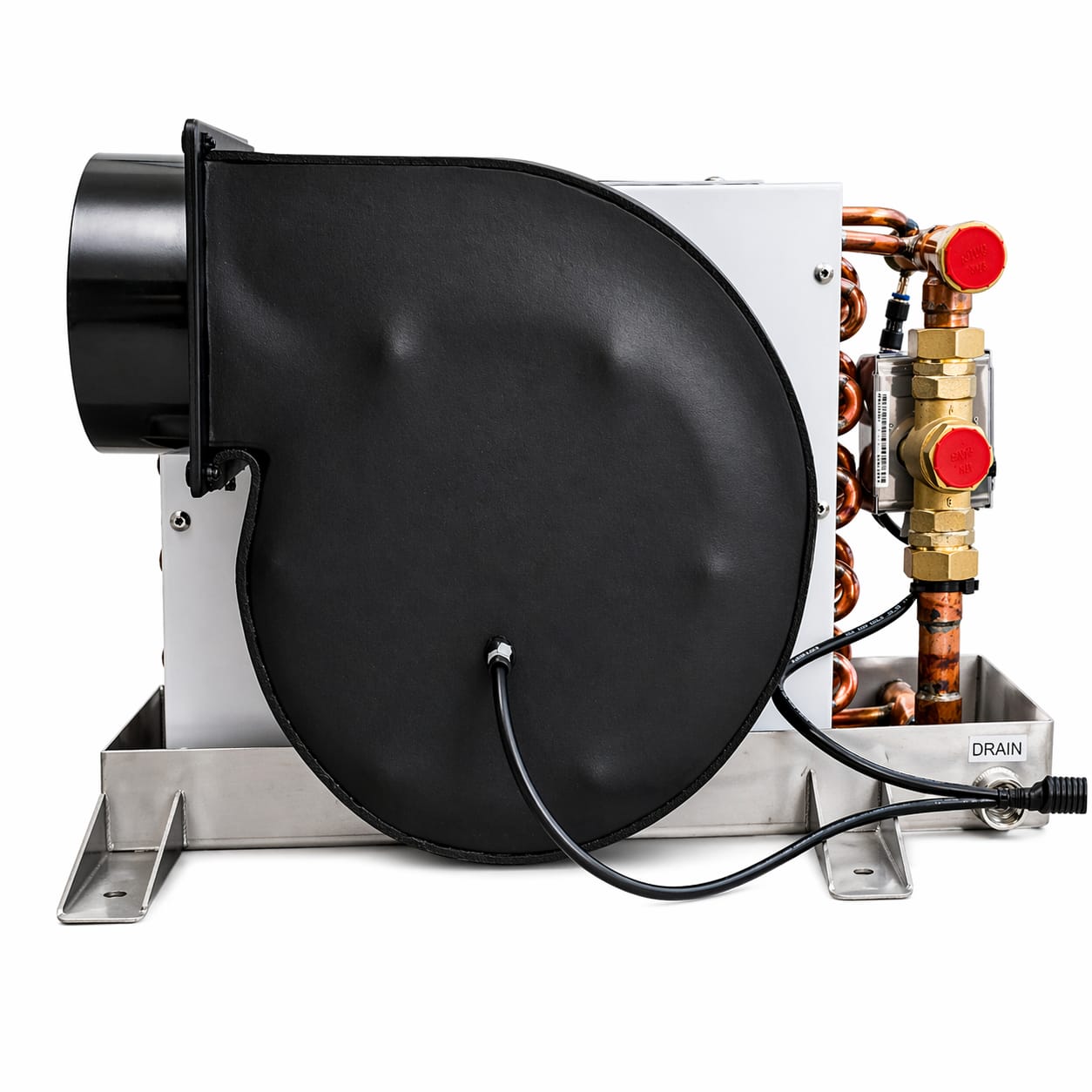

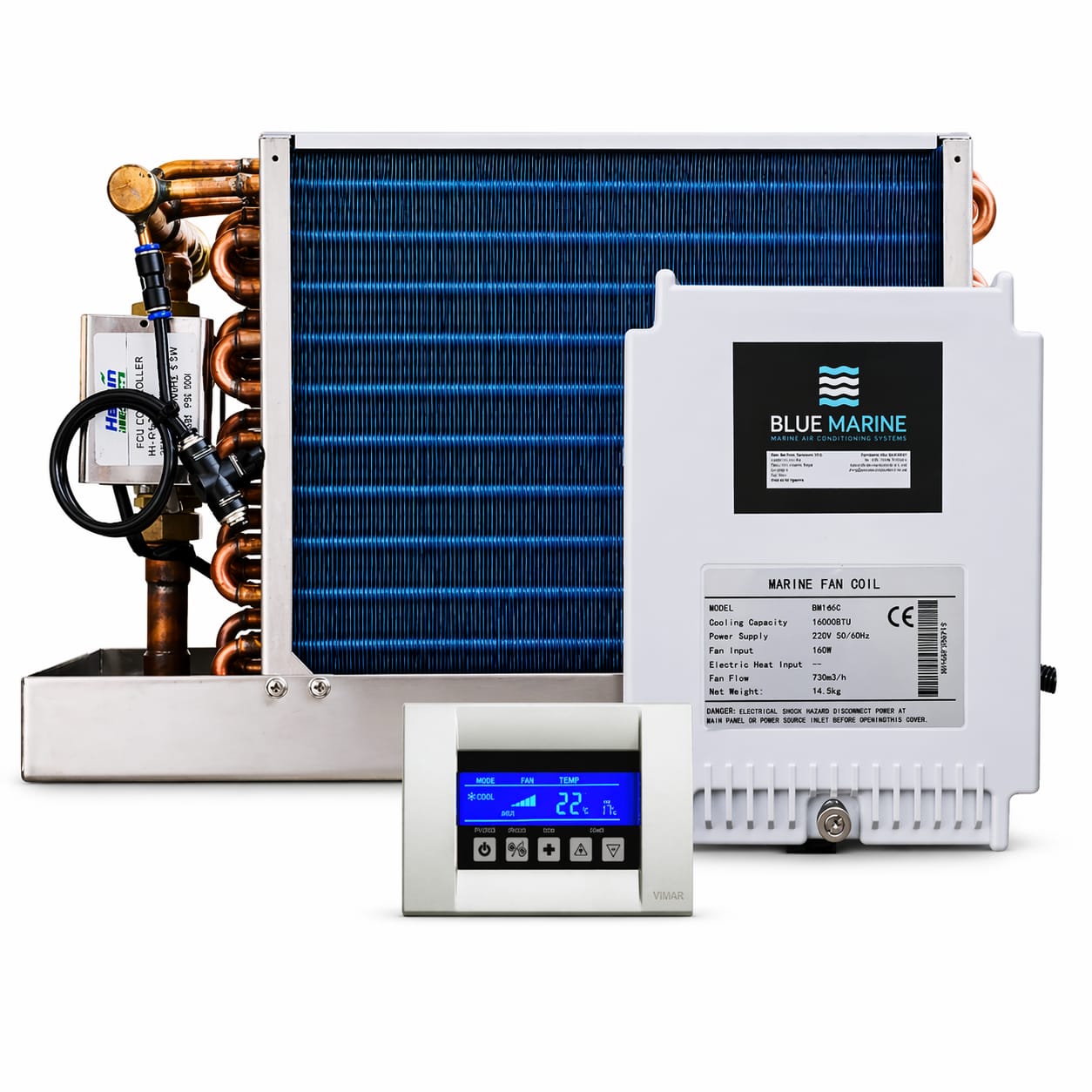

Fan coil — coil and blower
SYSTEM COMPATIBILITY
Cabin air handling
for chilled-water systems.
Use FC Series units with Blue Marine chillers or other standard marine chilled-water systems for new installations and refits.
Explore VFD Series chillers →
MODEL COMPARISON
Technical specifications.
| Specification | BM07FC | BM12FC | BM16FC | BM24FC | BM36FC |
|---|---|---|---|---|---|
| Cooling capacity (BTU/h) | 7000 | 12000 | 16000 | 24000 | 36000 |
| Electrical supply | 220–240 V / 50 Hz / 1 ph | 220–240 V / 50 Hz / 1 ph | 220–240 V / 50 Hz / 1 ph | 220–240 V / 50 Hz / 1 ph | 220–240 V / 50 Hz / 1 ph |
| Operating current (A) | 0.4 | 0.8 | 0.9 | 1.1 | 2.3 |
| Airflow (m³/h) | 380 | 600 | 800 | 1000 | 1500 |
| Air duct diameter (mm) | 100 | 125 | 150 | 200 | 200 |
| Dimensions H × W × D (mm) | 261 × 380 × 277 | 310 × 440 × 318 | 355 × 500 × 346 | 430 × 560 × 373 | 452 × 610 × 426 |
| Hose connection (in) | ¾ | ¾ | ¾ | ¾ | ¾ |
| Net weight (kg) | 8.5 | 11.6 | 15.5 | 21.5 | 32 |
Blue Marine product catalogue · dimensions shown as height × width × depth.
