Variable-speed output
Compressor speed adjusts to the cooling load.
VFD SERIES
Variable-speed
marine chillers.
Premium chilled-water climate systems for demanding vessels. Variable-frequency compressor control, titanium seawater condensers and intelligent staging bring refined comfort to every cabin.
24,000–80,000 BTU/h · Variable-frequency drive
Price on request
Request a quote
VARIABLE-FREQUENCY PERFORMANCE
Power, precisely
controlled.
Different cabins. Changing weather. A cooling load that never stands still. The VFD Series varies compressor speed to follow the vessel’s demand, delivering the output needed as conditions change.
Controlled acceleration minimises the startup surge associated with fixed-speed compressors. Once running, variable output supports stable chilled-water temperatures and efficient operation at partial load.
Minimal startup surge
A controlled ramp-up reduces demand during starting.
Consistent comfort
Stable chilled-water temperatures support every cabin zone.
TITANIUM SEAWATER CONDENSER
Exceptional resistance.
Built for seawater.
Titanium at the point where the system meets the sea.
Chosen for its exceptional resistance to seawater corrosion, the titanium condenser is a defining feature of the VFD Series. It gives the seawater circuit a premium material foundation for long-term marine service.
Combined with marine-grade construction and vibration-isolated mounting, it reflects the same focus throughout the system: dependable performance in a demanding onboard environment.
Premium condenser material
Titanium coils deliver outstanding resistance to saltwater corrosion.
Designed for service
Accessible connections and electrical compartments support professional inspection and maintenance.
INTELLIGENT MULTI-CHILLER STAGING
One plant.
Every cabin considered.
A central chilled-water circuit supplies fan coils throughout the vessel, allowing local cabin controls to manage individual spaces. Cooling equipment stays centralised while comfort is delivered where it is needed.
Up to eight chillers can be staged together for larger installations. Automatic load sharing distributes demand between units, while multiple chillers provide a basis for system redundancy.
Designed to scale
Configure capacity around the vessel’s layout, occupancy and cooling demand.
Control with clarity

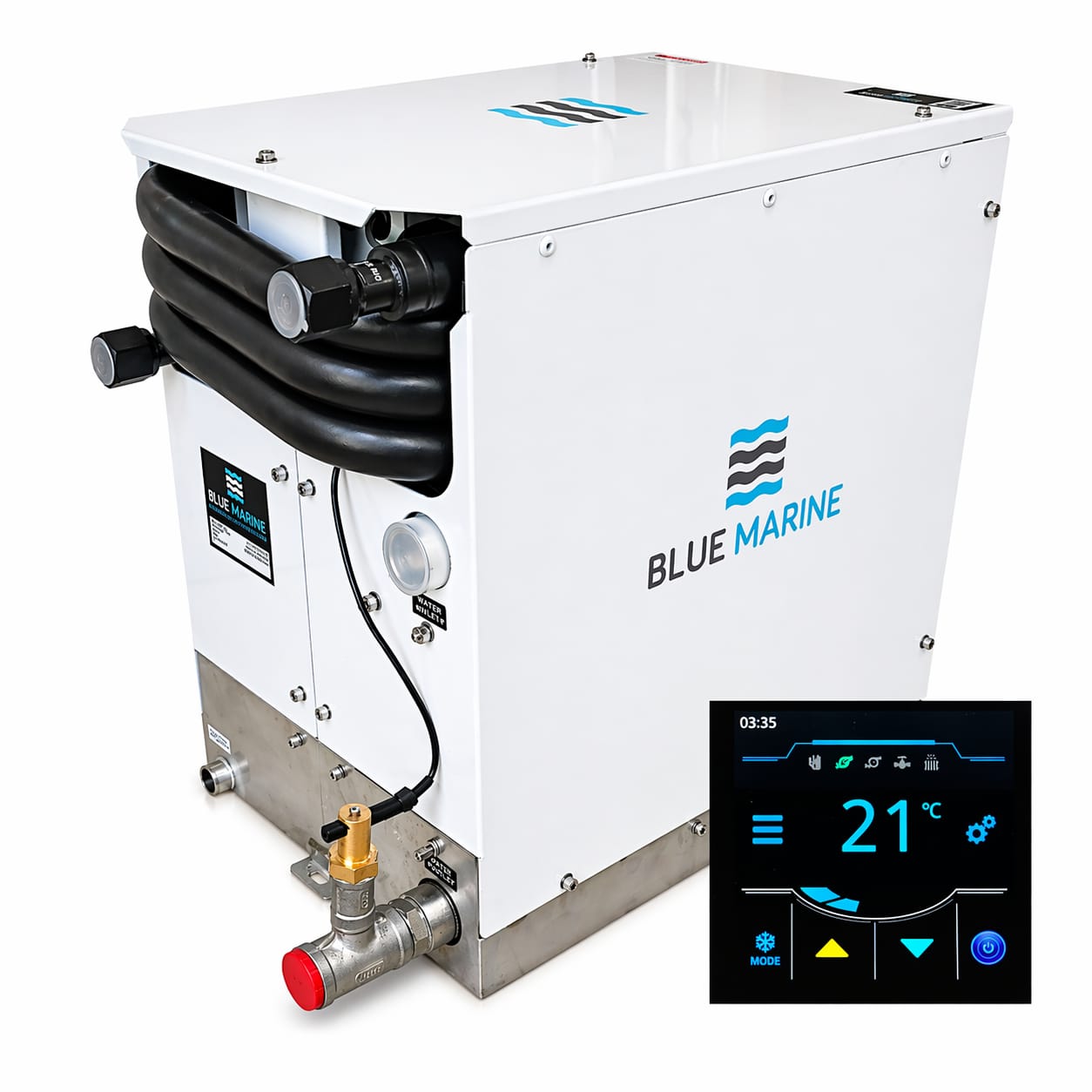

The colour touchscreen gives crew and engineers access to operating conditions, diagnostics and protective warnings.
PRODUCT DETAILS
A closer look.

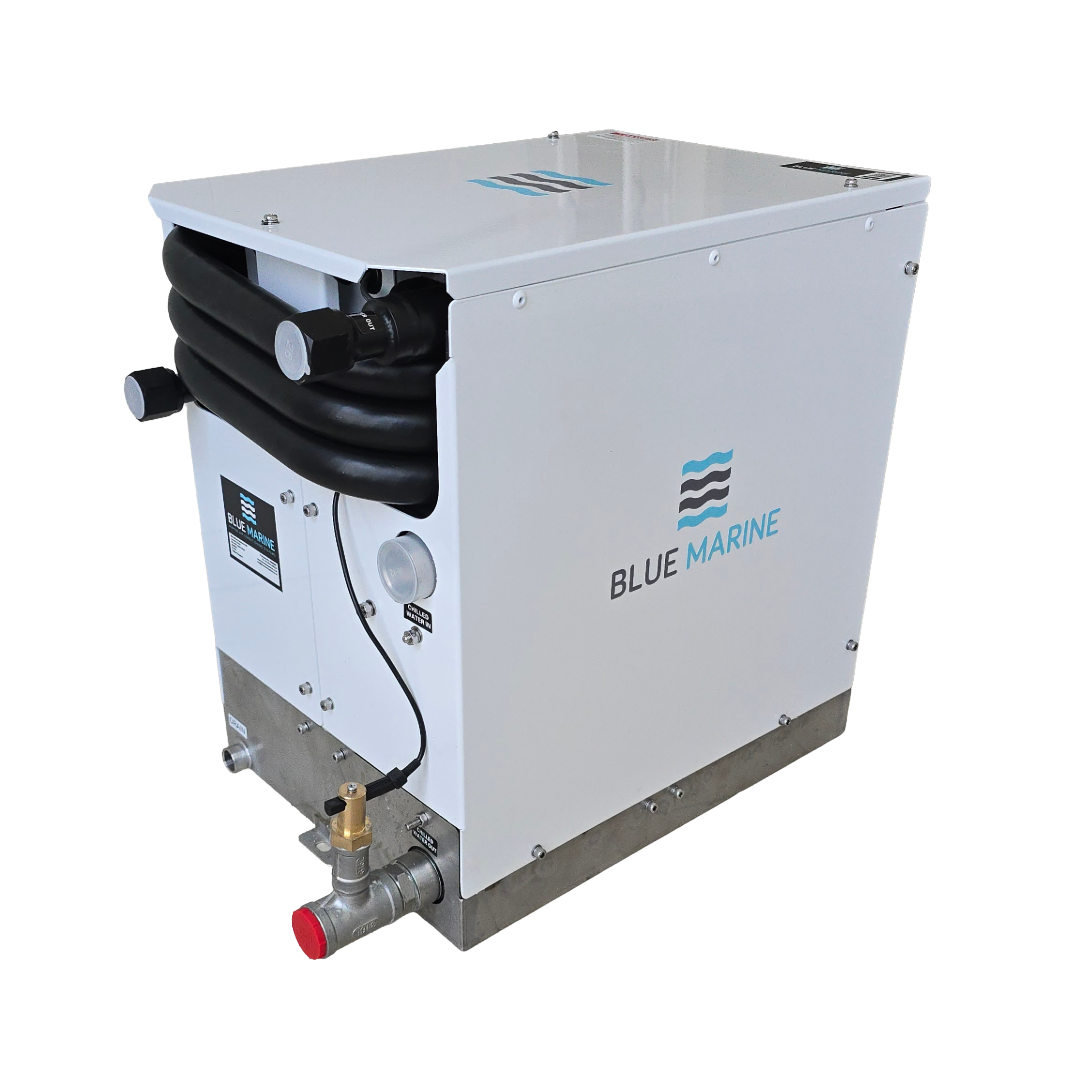

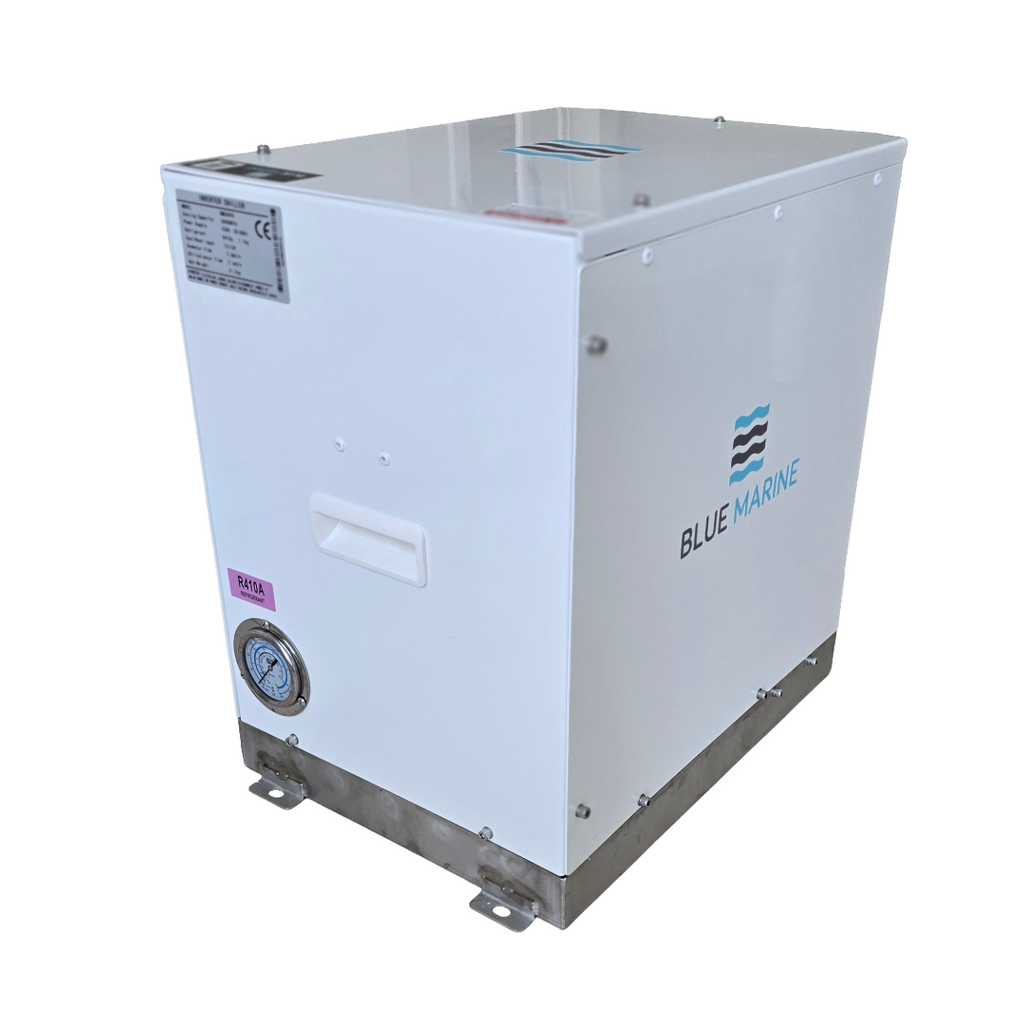

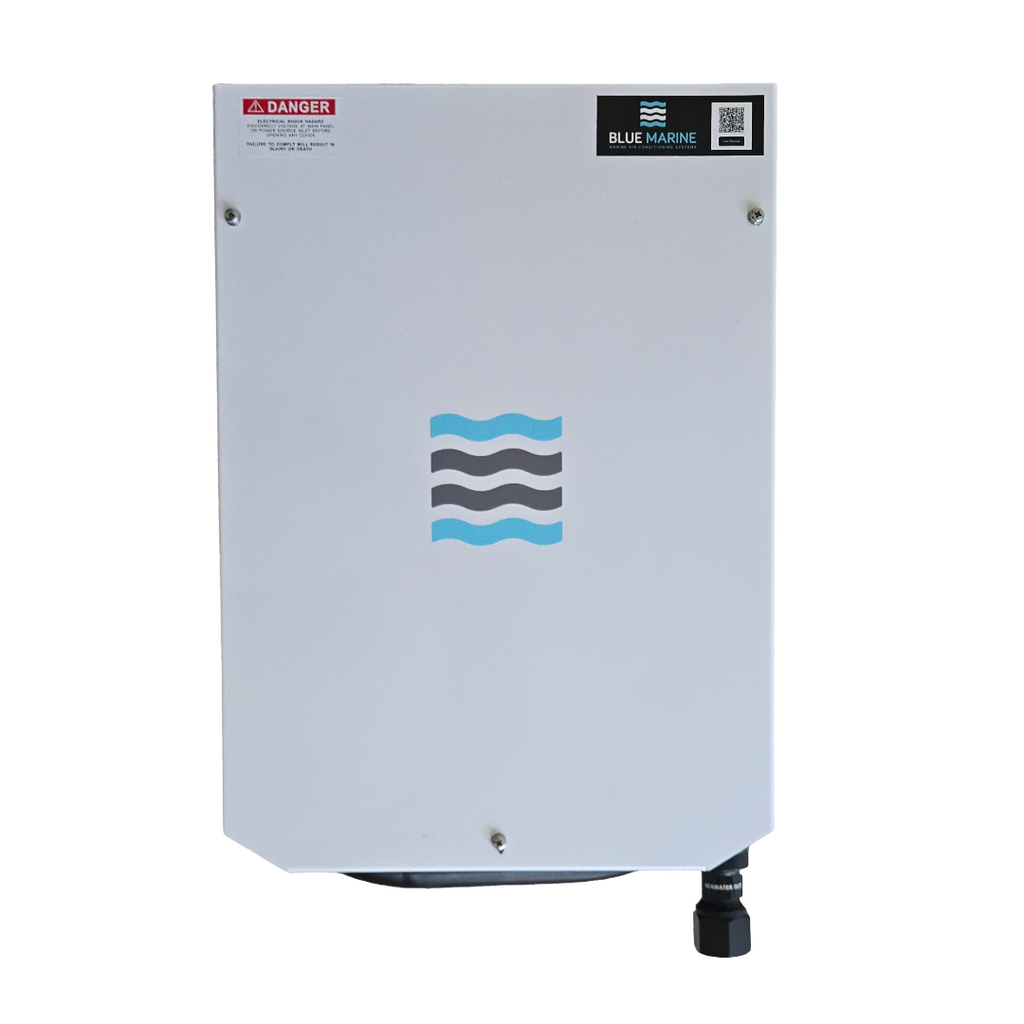

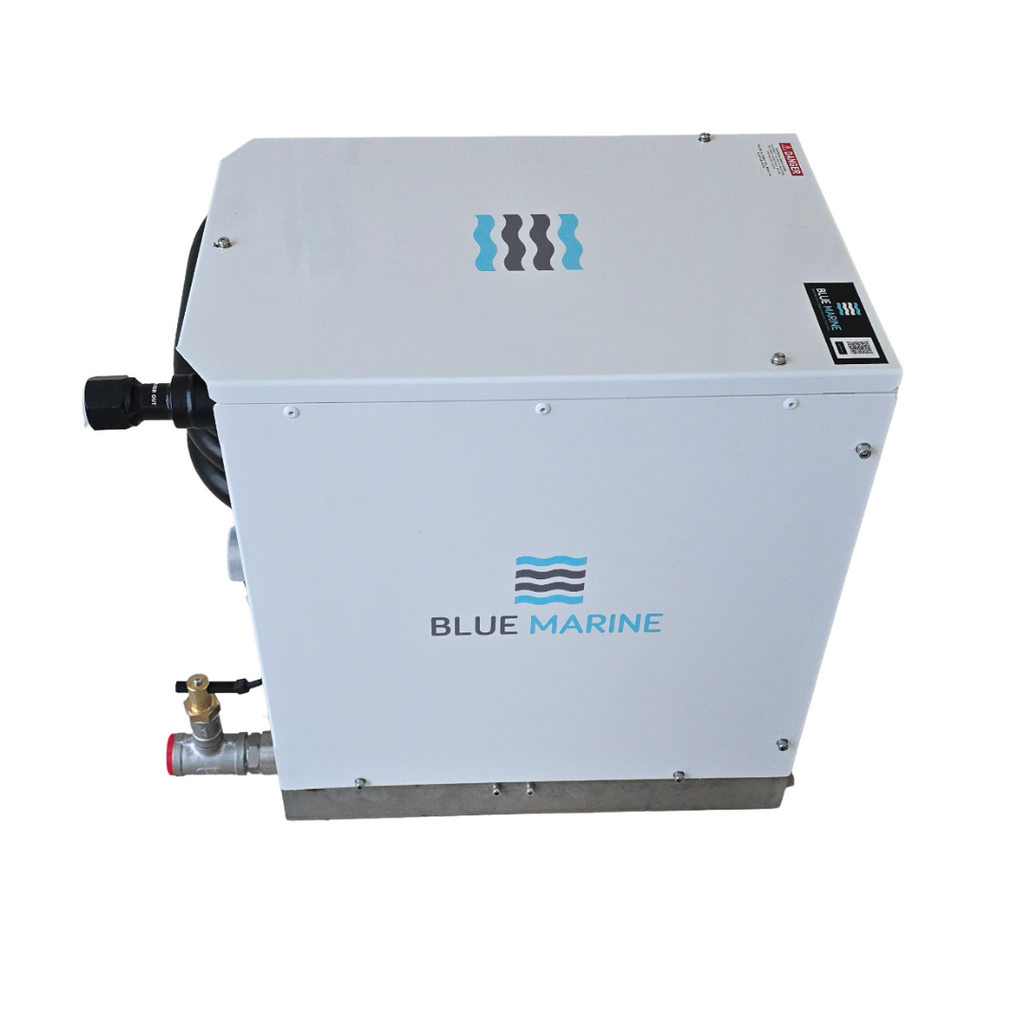

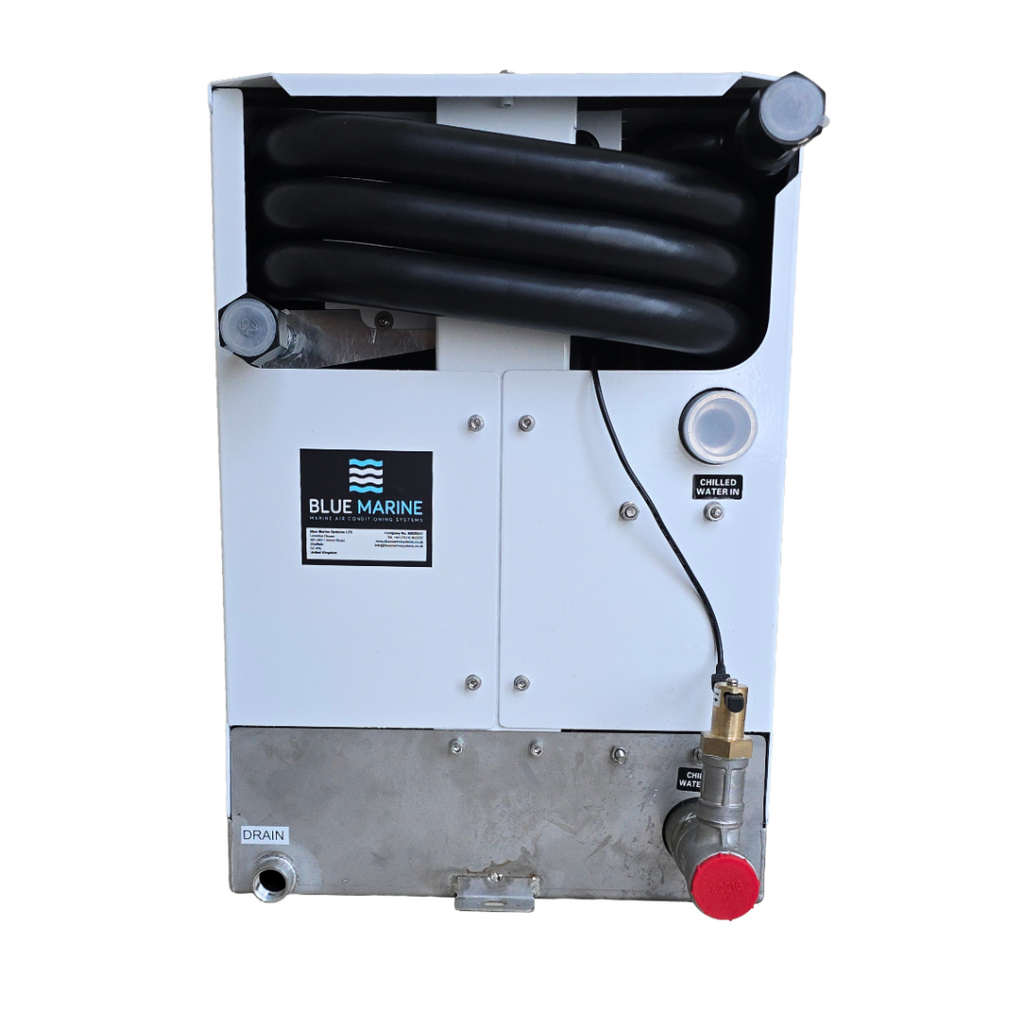

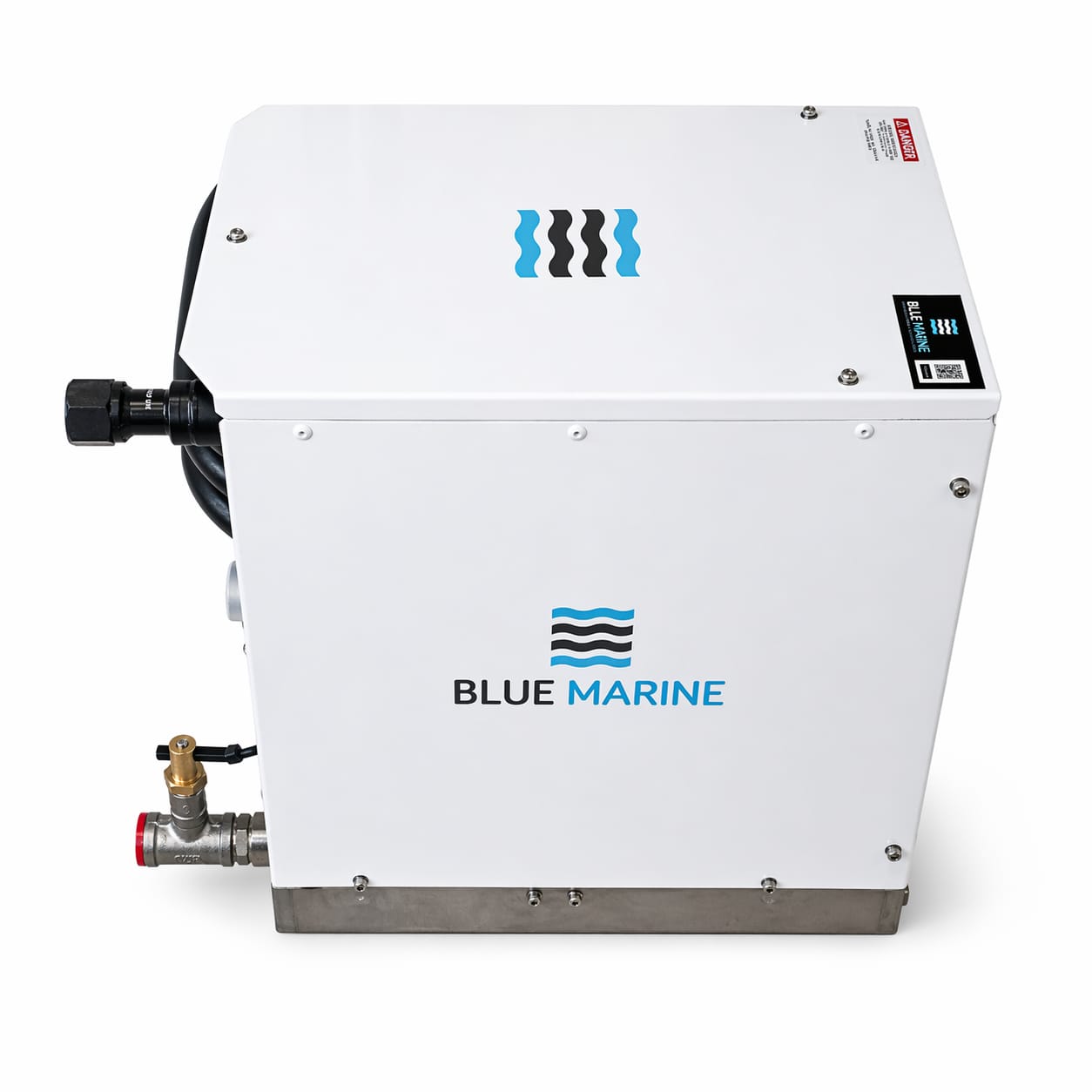

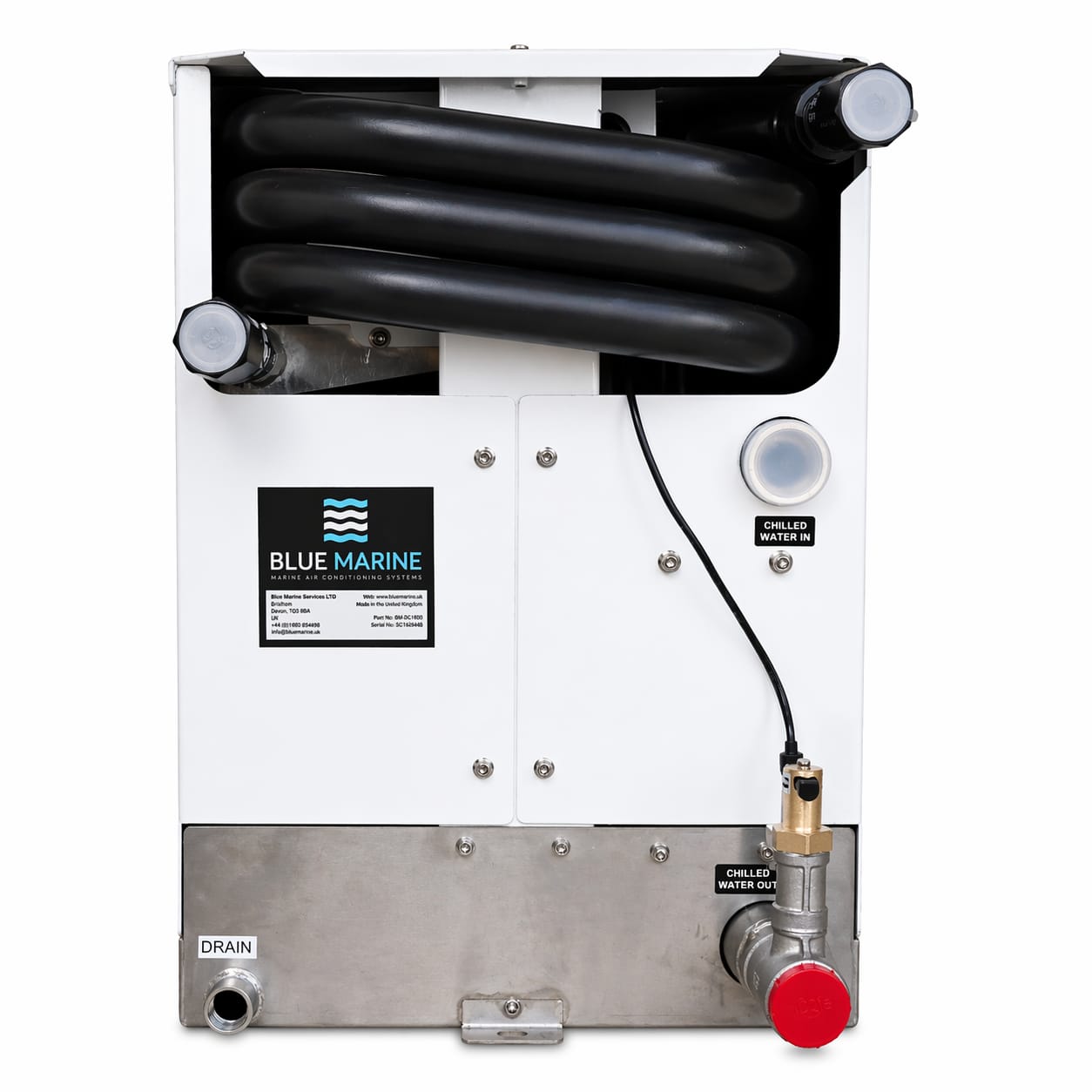

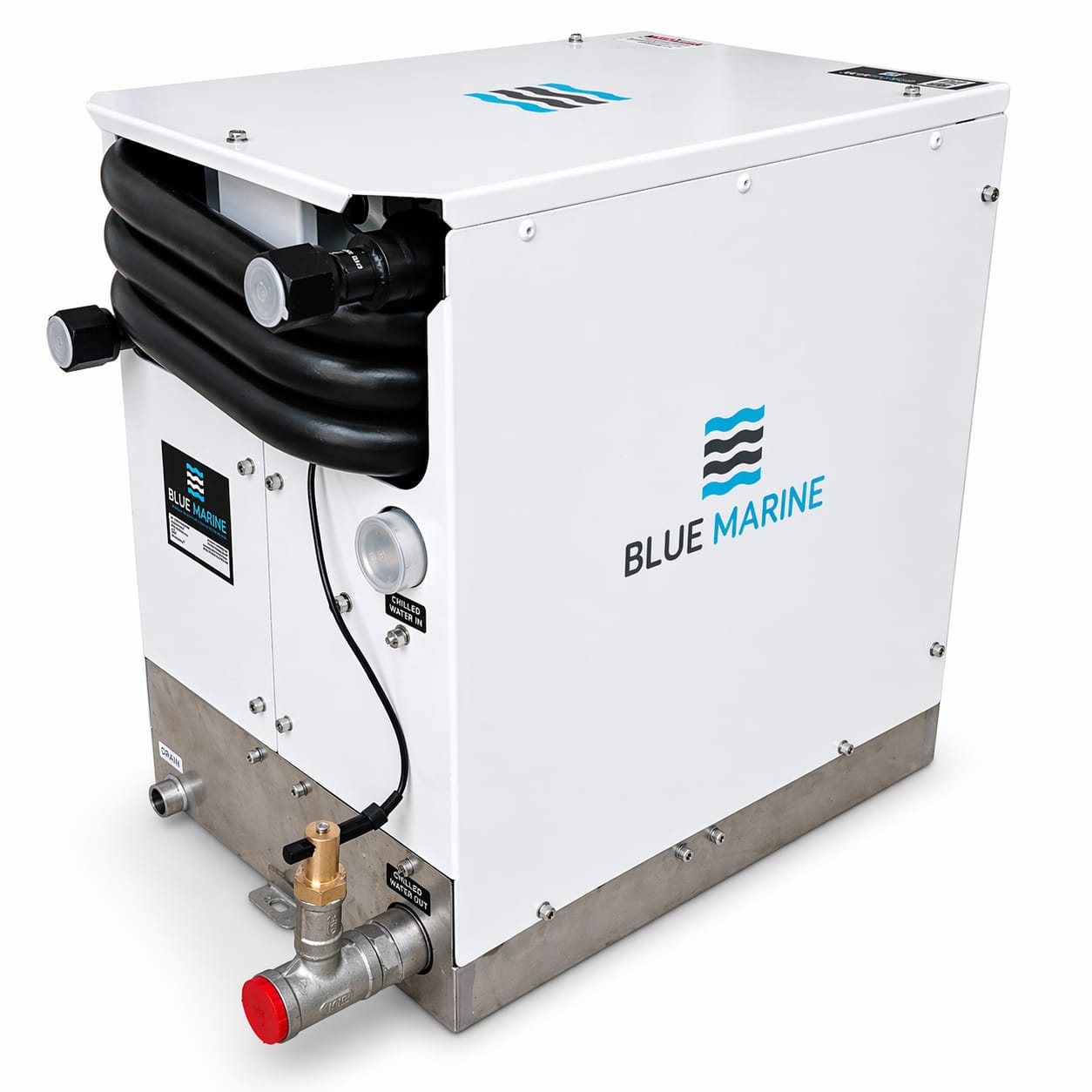

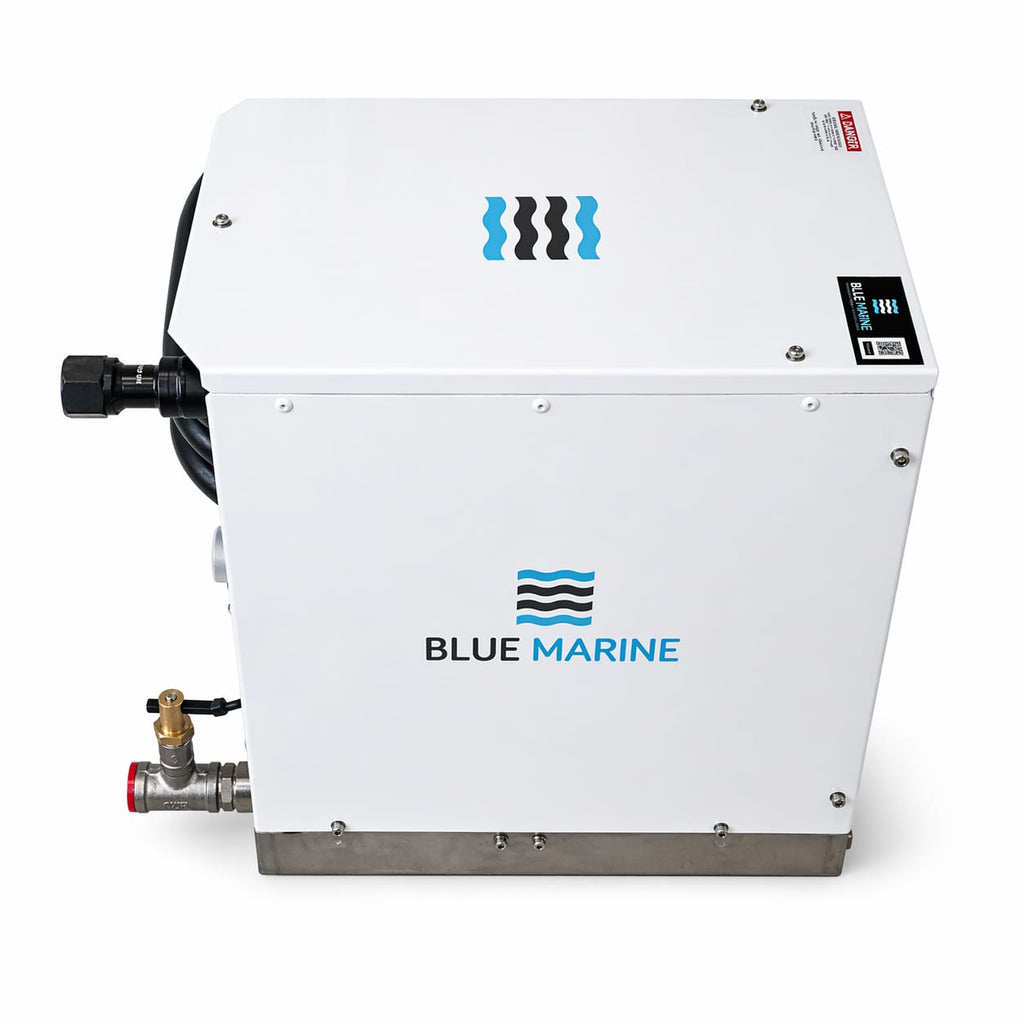

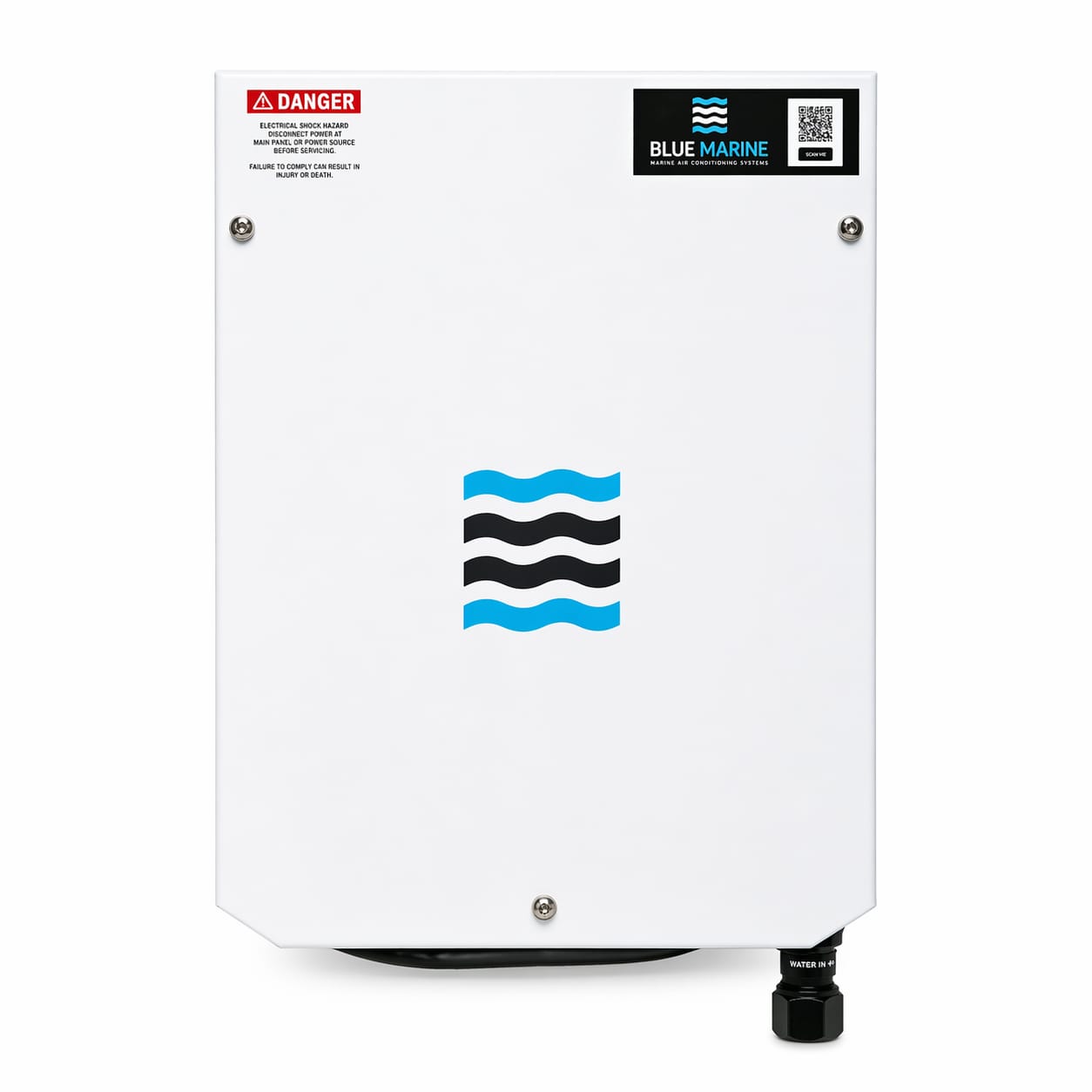

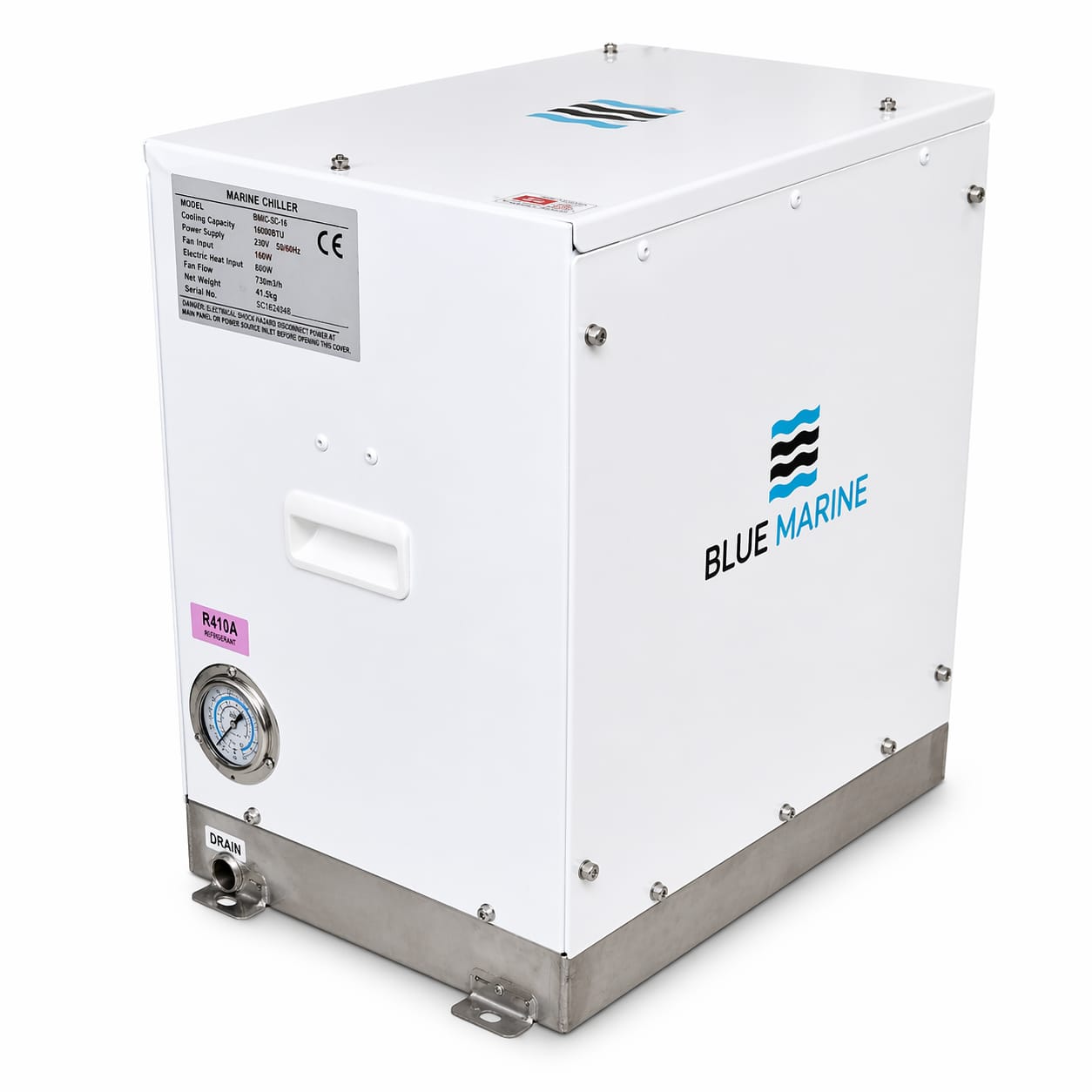

VFD chiller — enclosure view
CENTRAL CHILLED-WATER SYSTEMS
One plant.
Multiple cabin zones.
Connect the chiller to fan coils throughout the vessel. Each cabin receives local airflow and temperature control through the chilled-water circuit.
Explore FC Series fan coils →
MODEL COMPARISON
Technical specifications.
| Specification | BM24VFD | BM36VFD | BM50VFD | BM64VFD | BM80VFD |
|---|---|---|---|---|---|
| Cooling capacity (BTU/h) | 24000 | 36000 | 50000 | 64000 | 80000 |
| Heating capacity (BTU/h) | 26000 | 38500 | 53500 | 66800 | 83000 |
| Electrical supply | 220 V / 50 Hz / 1 ph | 220 V / 50 Hz / 1 ph | 220 V / 50 Hz / 1 ph | 220 V / 50 Hz / 1 ph | 220 V / 50 Hz / 1 ph |
| Cooling current (A) | 6 | 10 | 13 | 18 | 25 |
| Heating current (A) | 8 | 12 | 15 | 20 | 28 |
| Seawater flow (m³/h) | 1.5 | 1.98 | 2.4 | 3.3 | 3.9 |
| Dimensions H × W × D (mm) | 465 × 300 × 480 | 465 × 300 × 480 | 488 × 340 × 578 | 488 × 340 × 658 | 548 × 380 × 698 |
| Seawater connection (mm) | 16 | 16 | 19 | 19 | 19 |
| Chilled-water connection (in) | ¾ | ¾ | 1 | 1 | 1 |
| Net weight (kg) | 35 | 38 | 52 | 56 | 75 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
Blue Marine product catalogue · dimensions shown as height × width × depth.
